DLSB chiller system adopts anti-corrosive material, which has the functions of anti-rust, anti-corrosion, and low-temperature liquid pollution and sterilization.Large cooling capacity and fast cooling speed greatly improve work efficiency.
Features

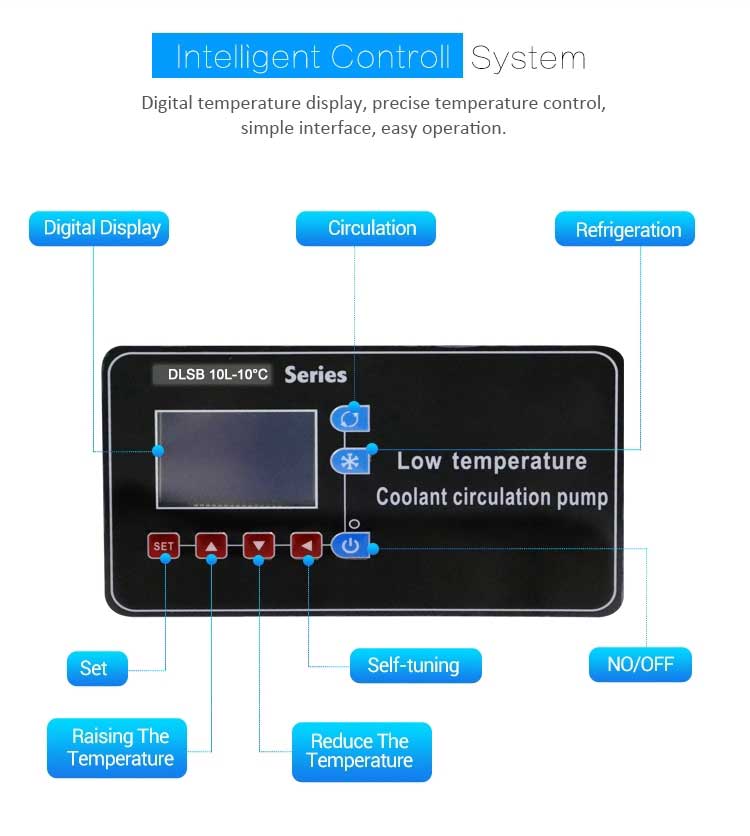

- Digitally calibrated temperature, easy to see;;
- Large cooling capacity and fast cooling rates greatly improve work efficiency.
- The circulatory system is made of anti-corrosion material and has functions such as anti-rust, anti-corrosion, and low-temperature liquid pollution sterilization.
- The circulation pump can output the cold liquid in the tank, cool or cool the outside of the experimental container or establish a second constant-temperature field.
- It can be matched with various instruments (rotary evaporators, fermentation tanks, chemical reactors, freeze-drying equipment, pharmaceutical reactors, etc.);
Detail
As a condensing device, the DLSB series chiller is suitable for the following laboratory equipment:
After sale
- 1 year warranty service and all life maintenance.
- Technical Egineer are avalible for oversea trainning.
- Free change for some parts
- Remote control technical consult
- Free installation DVD
- Maintenance plan
Package
Transport
| Model | DLSB-10/30 | |
| Volume(L) | 13.82 | |
| No Load Min. Temp. (℃) | -30 | |
| Environment Humidity(％) | ≤70 | |
| Power Supply(Single phase)(V/HZ) | 220/50 | |
| Temp. Precision（℃） | ±2 | |
| Cooling Capacity(W) | 20℃ | - |
| 10℃ | 1320 | |
| 0℃ | 1056 | |
| -10℃ | 880 | |
| -20℃ | 528 | |
| -30℃ | 120 | |
| -40℃ | - | |
| -60℃ | - | |
| -80℃ | - | |
| -100℃ | - | |
| -120℃ | - | |
| Total Power(W) | 980 | |
| Total Current(A) | 5.2 | |
| Refrigerant | R404A | |
| Circulating Pump | Power（W） | 100 |
| Flow(L/min) | 20 | |
| Lift(m) | 6 | |
| Open Size（mm） | 220L×220 | |
| Liquid tank（mm） | 240×240×240 | |
| Total Demension（mm） | 550×420×780 | |
| Weight(Kg) | 54 | |
| Fuse | 10A | |
